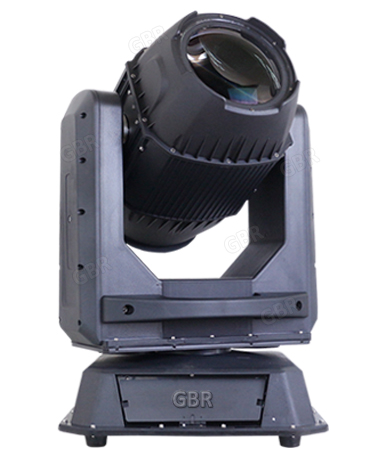

Product model:GBR-FB371/461
Product line:371W IP65 Outdoor Beam Moving Head
  • Video playback

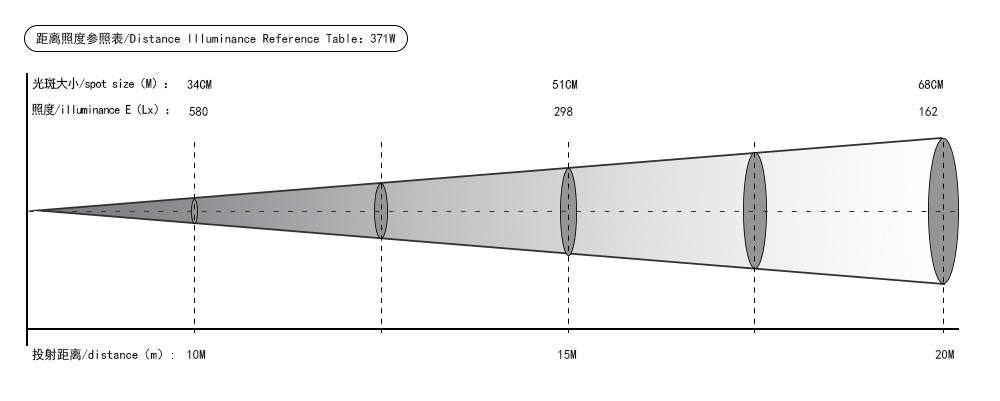

  • Light efficiency / Channel
  • Pattern color

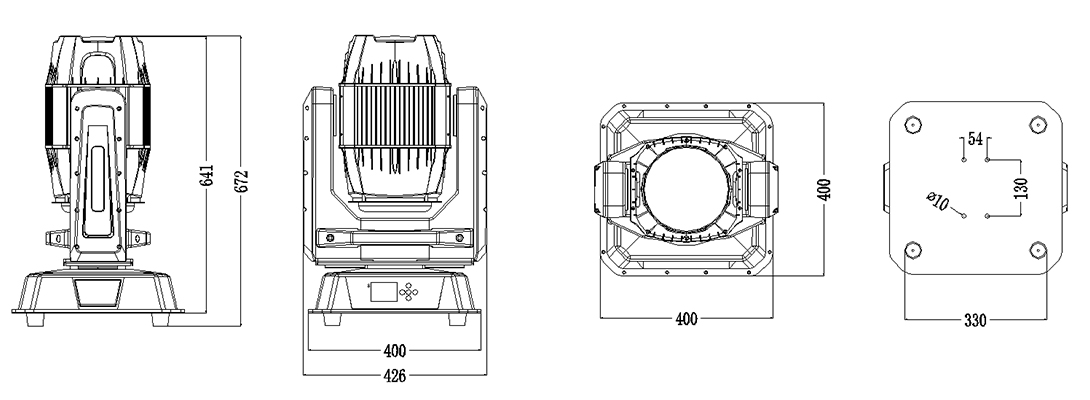

  • Lamp body size
  • Standard accessories
  • Download
  • Technical parameter
rame height=498 width=510 src='https://player.youku.com/embed/XNTk4NTI4MTEzMg==' frameborder=0 'allowfullscreen'>rame>



Input Voltage:100-240V AC 50/60Hz
Power Consumption: 700/600W
Light Source: OSRAM 461W or 371W
Life Span:1500 Hours

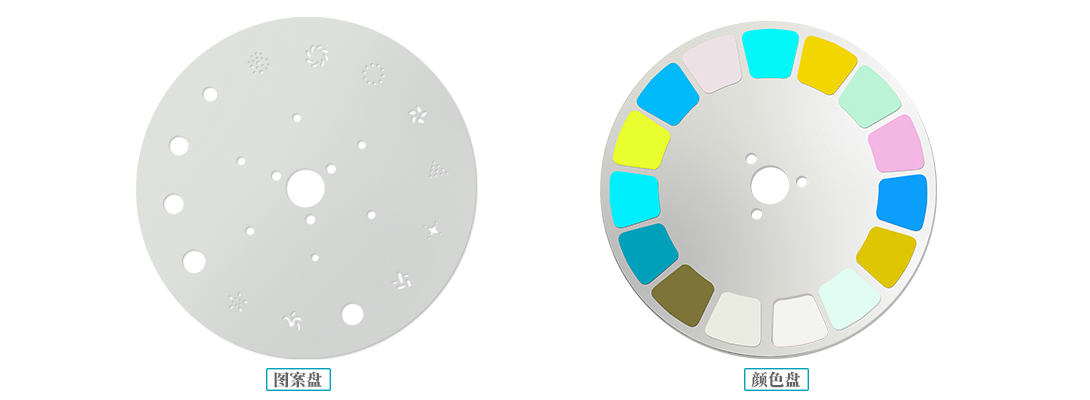

Colors:14 colors + Open color wheel variable direction runingspeed adjustable
Static Gobo:17 static Gobos+Open gobo wheelvariable direction runing Shaking effect Avaliable
Prism:8-face prism variable direction runing
Focus:Electronic Linear Focus
Frost:1 Slice Frost 0-100% linear adjust
Strobe/Dimmer: Double shutter 1-25HZ and Linear Dimmer
Scan Range:540° pan and 270° tilt movement 16 bit smooth
Beam Angle:0-2.3° Beam Angle
Control Mode:Standard DMX 512Master/SlaveWork AutoSound Activity
DMX Channels: Simplify Mode: 16/20 DMX Channels
Other Function:High precision Optics Glass lens Pan And Tilt Moving Speed
adjustmentScan position memory auto X/Y reposition CorrectionFixture and
Lamp working time on display for easy maintenance
Material & IP Rate:High temperature Engineering plastic and metal housing IP55 waterproof grade design the water-repellent tape is embedded in the seal to ensure that the internal parts are not affected by external rainwater
Product Size:490x400x820mm
N.W.:28kgs

Input Voltage:100-240V AC 50/60Hz
Power Consumption: 700/600W
Light Source: OSRAM 461W or 371W
Life Span:1500 Hours
Colors:14 colors + Open color wheel variable direction runingspeed adjustable
Static Gobo:17 static Gobos+Open gobo wheelvariable direction runing Shaking effect Avaliable
Prism:8-face prism variable direction runing
Focus:Electronic Linear Focus
Frost:1 Slice Frost 0-100% linear adjust
Strobe/Dimmer: Double shutter 1-25HZ and Linear Dimmer
Scan Range:540° pan and 270° tilt movement 16 bit smooth
Beam Angle:0-2.3° Beam Angle
Control Mode:Standard DMX 512Master/SlaveWork AutoSound Activity
DMX Channels: Simplify Mode: 16/20 DMX Channels
Other Function:High precision Optics Glass lens Pan And Tilt Moving Speed
adjustmentScan position memory auto X/Y reposition CorrectionFixture and
Lamp working time on display for easy maintenance
Material & IP Rate:High temperature Engineering plastic and metal housing IP55 waterproof grade design the water-repellent tape is embedded in the seal to ensure that the internal parts are not affected by external rainwater
Product Size:490x400x820mm
N.W.:28kgs
A manual

A signal line

One power cord.
Input Voltage:100-240V AC, 50/60Hz
Power Consumption: 700/600W
Light Source: OSRAM 461W or 371W
Life Span:1500 Hours
Colors:14 colors + Open color wheel, variable direction runing,speed adjustable
Static Gobo:17 static Gobos+Open gobo wheel,variable direction runing, Shaking effect Avaliable
Prism:8-face prism ,variable direction runing
Focus:Electronic Linear Focus
Frost:1 Slice Frost, 0-100% linear adjust
Strobe/Dimmer: Double shutter 1-25HZ and Linear Dimmer
Scan Range:540° pan and 270° tilt movement 16 bit smooth
Beam Angle:0-2.3° Beam Angle
Control Mode:Standard DMX 512,Master/Slave,Work Auto,Sound Activity
DMX Channels: Simplify Mode: 16/20 DMX Channels
Other Function:High precision Optics Glass lens ,Pan And Tilt Moving Speed
adjustment,Scan position memory, auto X/Y reposition Correction,Fixture and
Lamp working time on display for easy maintenance
Material & IP Rate:High temperature Engineering plastic and metal housing , IP55 waterproof grade design, the water-repellent tape is embedded in the seal to ensure that the internal parts are not affected by external rainwater
Product Size:490x400x820mm
N.W.:28kgs
