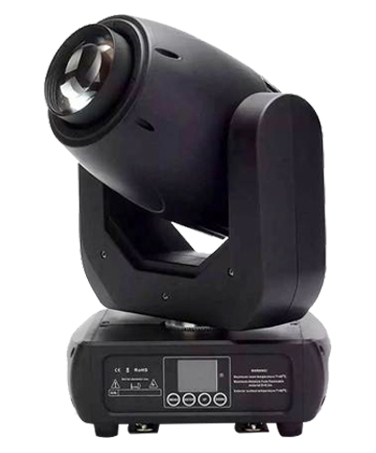

Product model:GBR-BL150
Product line:150W LED Beam Moving Head light
  • Video playback
  • Light efficiency / Channel
  • Pattern color
  • Lamp body size
  • Standard accessories
  • Download
  • Technical parameter
Specifications
· Input Voltage:  AC90-260V 50/60Hz
· Light Source:  150W High Output White LED
· Control Signal:  DMX 512 master-slave and sound activated or auto operation
· Control Channel:  16/14/12/10 DMX Channels USITT DMX-512
· Power Consumption:  250W
· Dimensions:  270(D)*270(W)*470(H)mm
· Packing Dimensions: 305(D)*305(W)*500(H)mm
· Net Weight: 10.6kg    Gross Weight: 12.6kg

Features
· 150W High Output White LED
· 50000 hours lifespan and low power consumption
· Beam Angle 6° Outstanding sharp BEAM effect and remarkable wash effect with pure color mixing and focus Function
· High light output 14020LUX@5M at White light
· Temperature protect function when the internal temperature is up to 40° and then the fans begin to work when the internal temperature is up to 70° and the brightness reduce half.
· Color Wheel: 7 colors +white rotation with variable direction and speed
· 1 static Gobo Wheel: 8 gobos +white wheel rotation and shake
· 1 Rotate Gobo Wheel: 6 gobos +white wheel rotation and shake
· Prism: 8-facet Prism bi-directionally rotatable at variable speeds
· High speed strobe effect with 1-25 flashers per second
· Internal program available
· 16/14/12/10 DMX Channels USITT DMX-512
· DMX 512 master-slave and sound activated controllable or auto operation
· Specific computer control software as optional
· Colorful LCD display
· Efficient low noise fan cooling system
· POWERCON IN/OUT
· 3-pin XLR connectors IN/OUT
· Two 1/4 turn fastening Omega Clamps
· IP 20 protection rating
