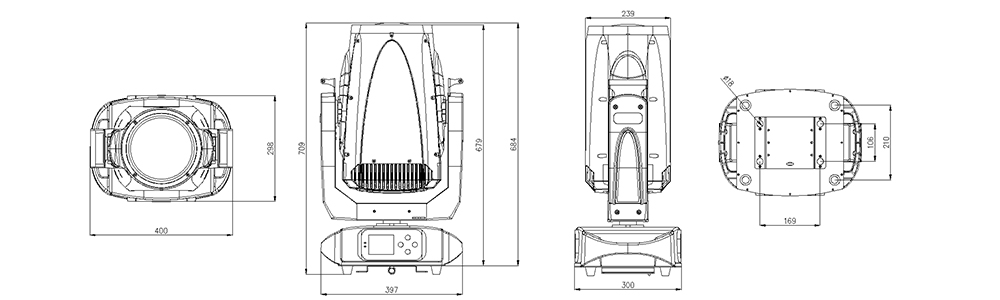

- Lamp body size
- Standard accessories
- Download
- Technical parameter
Input Voltage: AC100-240V, 50/60Hz
Light Source: Osram SIRIUS 371W
Power Consumption: 500W
Life Span: ≥ 1500 H
Beam Angle: 2°

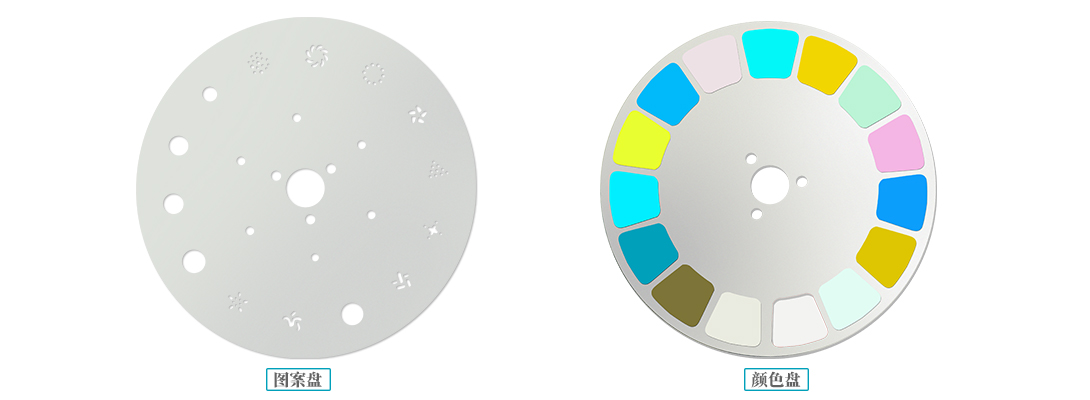

Static Gobo: 13 static Gobos + Open
Colors:14 colors + Open
Color 2: CMY + CTO Color Mixing
Prism: 8-facet Prism and 16-facet prism with bi-directional rotating at variable speeds
Color Temperature: 7800K
Focus: 0-100% Linear Focus
Frost: 0-100% linear frost
Strobe: 1-25HZ shutter with speed adjust
Movement: 540° pan and 270° tilt movement , 16 bit smooth and precise resolution for PAN/TILT movement
Control Mode: DMX 512,Master/Slave, Work Auto, Sound Activated ,Support RDM control
DMX Channels: 16/20 DMX Channels
DMX Connector: 3-PIN IP XLR IN/OUT
Software update: Easy to update Via DMX Connector
Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically
Body Structure: Aluminum Alloy Die-Cast + plastic
Working Enviroment: -20℃～ 45℃
IP Rate: IP65 waterproof grade design
Product Size: 45x40x70cm
N.W: 28.7kgs
Packing Size: 53x53x73cm
G.W: 34kgs
Input Voltage: AC100-240V, 50/60Hz
Light Source: Osram SIRIUS 371W
Power Consumption: 500W
Life Span: ≥ 1500 H
Beam Angle: 2°
Static Gobo: 13 static Gobos + Open
Colors:14 colors + Open
Color 2: CMY + CTO Color Mixing
Prism: 8-facet Prism and 16-facet prism with bi-directional rotating at variable speeds
Color Temperature: 7800K
Focus: 0-100% Linear Focus
Frost: 0-100% linear frost
Strobe: 1-25HZ shutter with speed adjust
Movement: 540° pan and 270° tilt movement , 16 bit smooth and precise resolution for PAN/TILT movement
Control Mode: DMX 512,Master/Slave, Work Auto, Sound Activated ,Support RDM control
DMX Channels: 16/20 DMX Channels
DMX Connector: 3-PIN IP XLR IN/OUT
Software update: Easy to update Via DMX Connector
Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically
Body Structure: Aluminum Alloy Die-Cast + plastic
Working Enviroment: -20℃～ 45℃
IP Rate: IP65 waterproof grade design
Product Size: 45x40x70cm
N.W: 28.7kgs
Packing Size: 53x53x73cm
G.W: 34kgs
Product Size: 45x40x70cm
N.W: 28.7kgs
Packing Size: 53x53x73cm
G.W: 34kgs
Instructions: One copy;
Power cord: one;
Signal line: one;
Input Voltage: AC100-240V, 50/60Hz
Light Source: Osram SIRIUS 371W
Power Consumption: 500W
Life Span: ≥ 1500 H
Beam Angle: 2°
Static Gobo: 13 static Gobos + Open
Colors:14 colors + Open
Color 2: CMY + CTO Color Mixing
Prism: 8-facet Prism and 16-facet prism with bi-directional rotating at variable speeds
Color Temperature: 7800K
Focus: 0-100% Linear Focus
Frost: 0-100% linear frost
Strobe: 1-25HZ shutter with speed adjust
Movement: 540° pan and 270° tilt movement , 16 bit smooth and precise resolution for PAN/TILT movement
Control Mode: DMX 512,Master/Slave, Work Auto, Sound Activated ,Support RDM control
DMX Channels: 16/20 DMX Channels
DMX Connector: 3-PIN IP XLR IN/OUT
Software update: Easy to update Via DMX Connector
Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically
Body Structure: Aluminum Alloy Die-Cast + plastic
Working Enviroment: -20℃～ 45℃
IP Rate: IP65 waterproof grade design
Product Size: 45x40x70cm
N.W: 28.7kgs
Packing Size: 53x53x73cm
G.W: 34kgs
